A high pressure, High performance, airless paint spray hose specially designed to meet the exacting requirements of the industry textile, Steel braid and synthetic fiber reinforcing ensures strength and guaranteed electrical conductivity.
This hose offers optimum resistance to a wide range of fluids including paints, chlorinated solvents and other chemicals. Cover pin-pricked as standard.

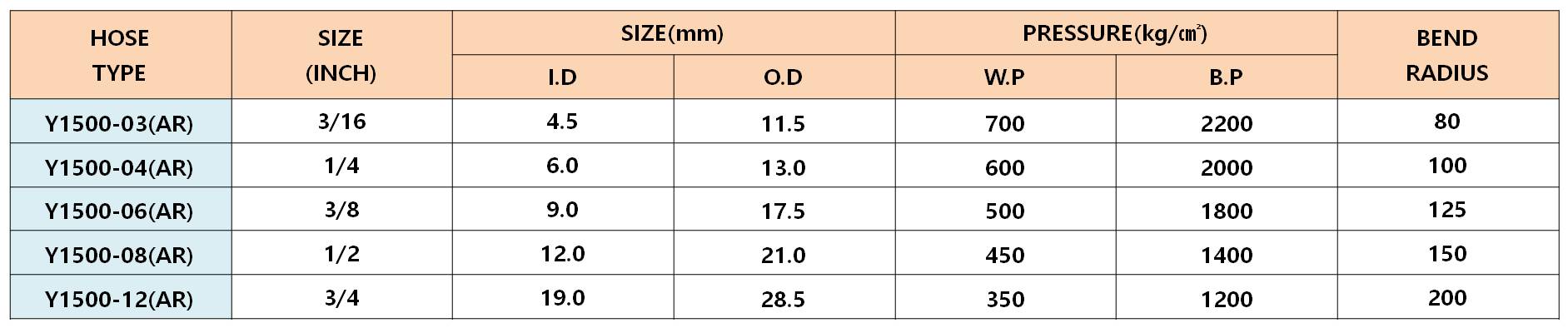

Type Y1500(ARAMID) comprises of a nylon 12 tube reinforced with textile, brass coated high tensile steel wire braid and synthetic fiber.
The blue outer cover is polyurethane, other colors are available to special order.


This hose meets Korea Institute of Machinery & Materials approved specifications when impulse tested at 125% of the stated dynamic working pressure at bend radius defined in K.I.O.M.M and using designated Young Power permanently swaged fittings.


Young Power non-skived permanently swaged fittings are fully K.I.O.M.M approved.


Min/max continuous service temperature range -40 to 100
Resistant to most chemicals, paints and solvents.
Excellent flexibility with small bend radius.
Superior and reliable eletrical conductivity resistance in the order of 1.0 ohms/meter.
Cover provides excellent abrasion resistance.


Airless Paint Spray Equipment.
